Graphing with ggplot2
Kelly McConville
Stat 100
Week 3 | Fall 2023
ggplot2
.ggplot2
is part of this collection of data science packages.
Rows: 192
Columns: 8
$ DateTime <chr> "07/04/2019 12:00:00 AM", "07/04/2019 12:15:00 AM", "07/04/2…
$ Day <chr> "Thursday", "Thursday", "Thursday", "Thursday", "Thursday", …
$ Date <date> 2019-07-04, 2019-07-04, 2019-07-04, 2019-07-04, 2019-07-04,…
$ Time <time> 00:00:00, 00:15:00, 00:30:00, 00:45:00, 01:00:00, 01:15:00,…
$ Total <dbl> 2, 3, 2, 0, 3, 2, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 1, 1, …
$ Westbound <dbl> 2, 3, 1, 0, 2, 2, 1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, …
$ Eastbound <dbl> 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, …
$ Occasion <chr> "Fourth of July", "Fourth of July", "Fourth of July", "Fourt…
ggplot2

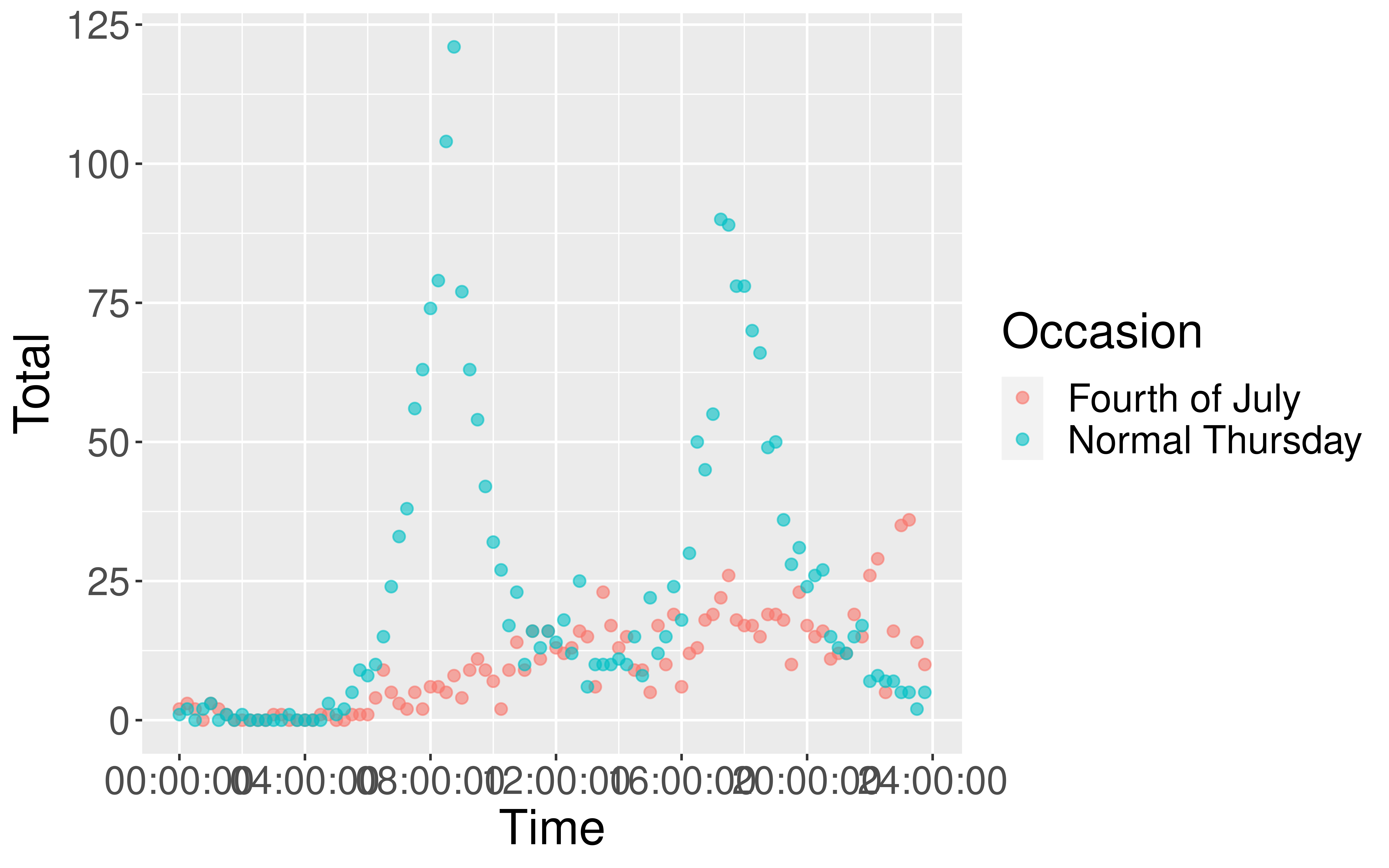

example codeGuiding Principle: We will map variables from the data to the aesthetic attributes (e.g. location, size, shape, color) of geometric objects (e.g. points, lines, bars).
There are other layers, such as scales_---_---()
and labs()
, but we will wait on those.
aes()
geom_---()

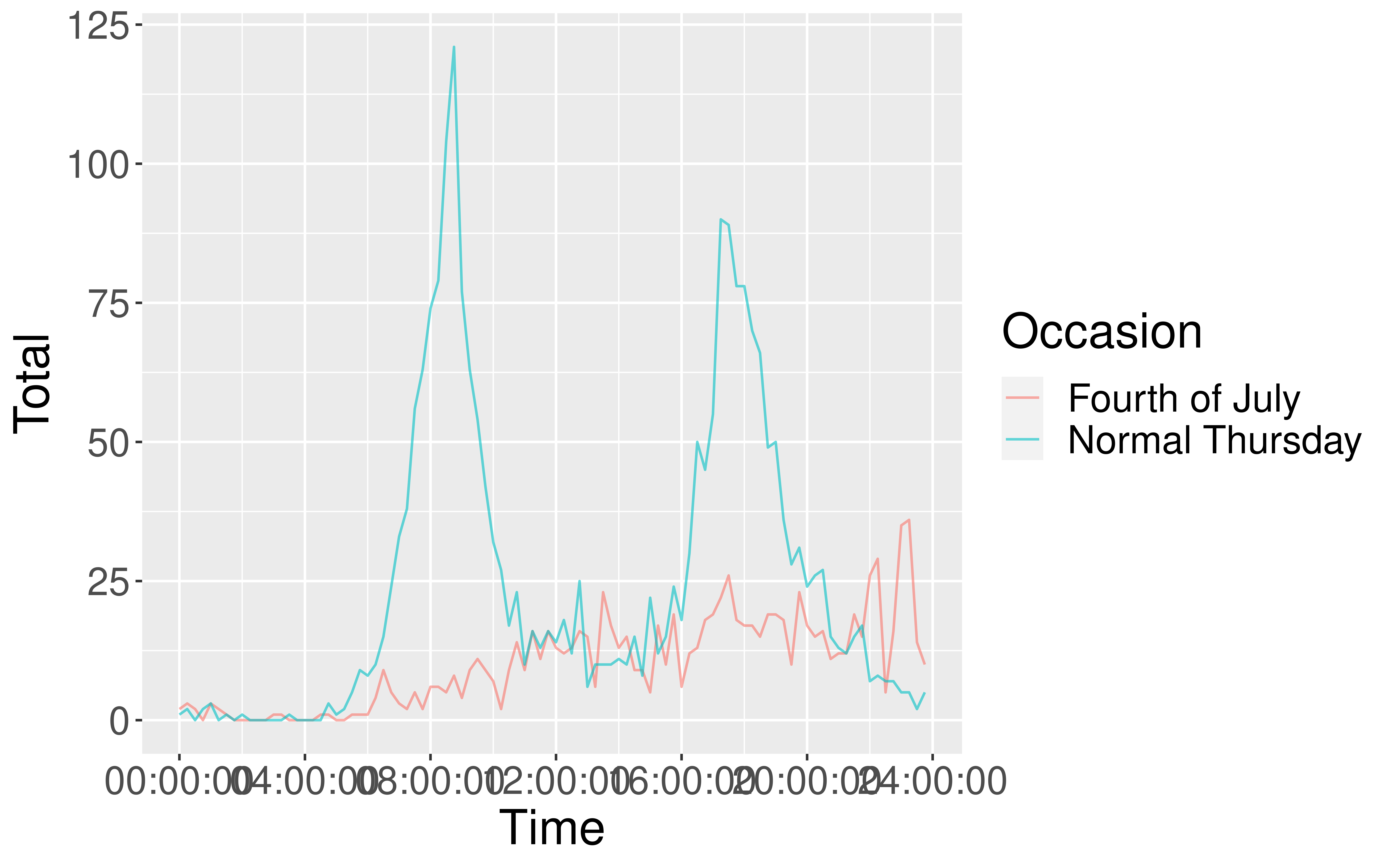

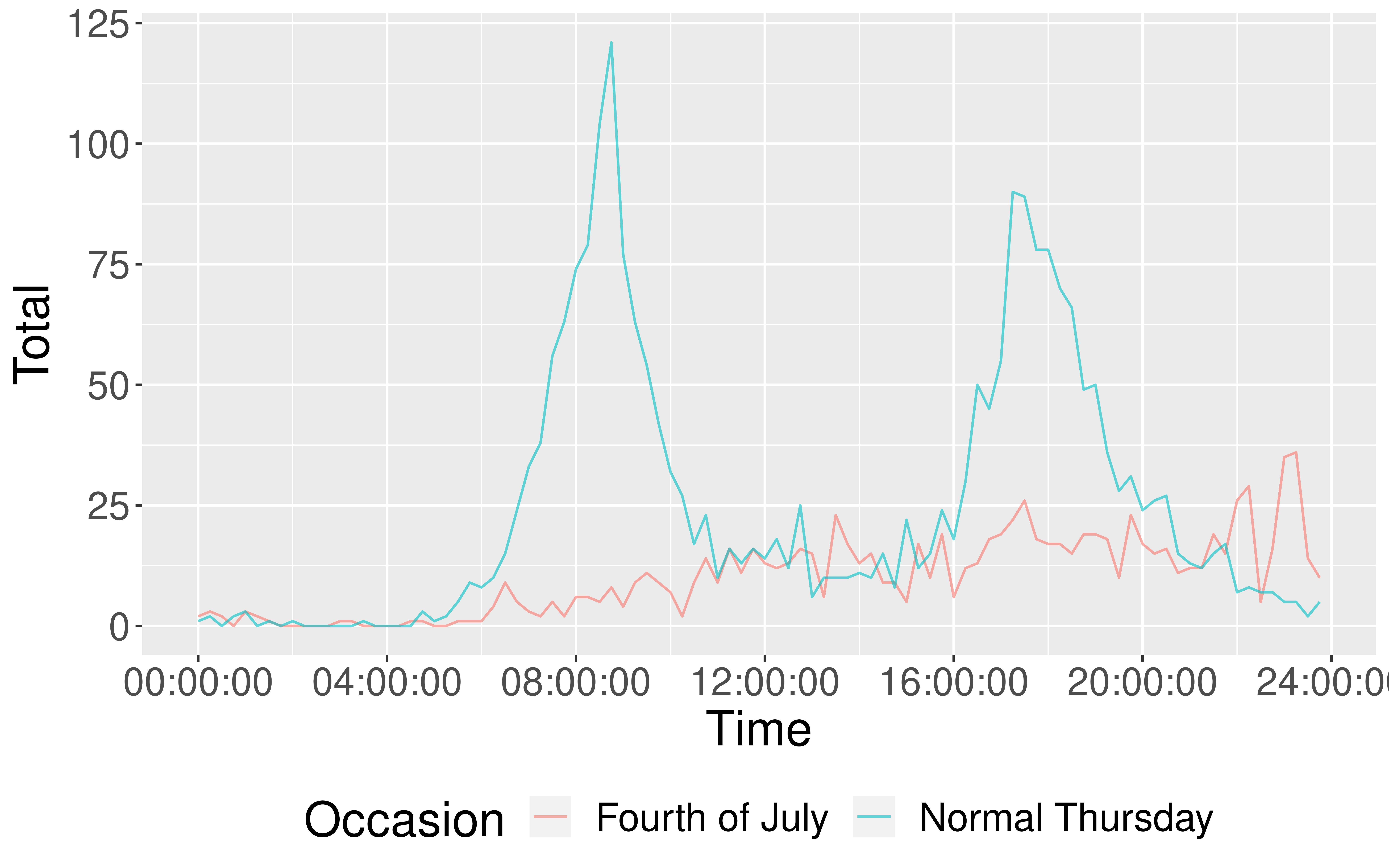

Also called time series plot when time is represented on the x axis.
Also called time series plot when time is represented on the x axis.

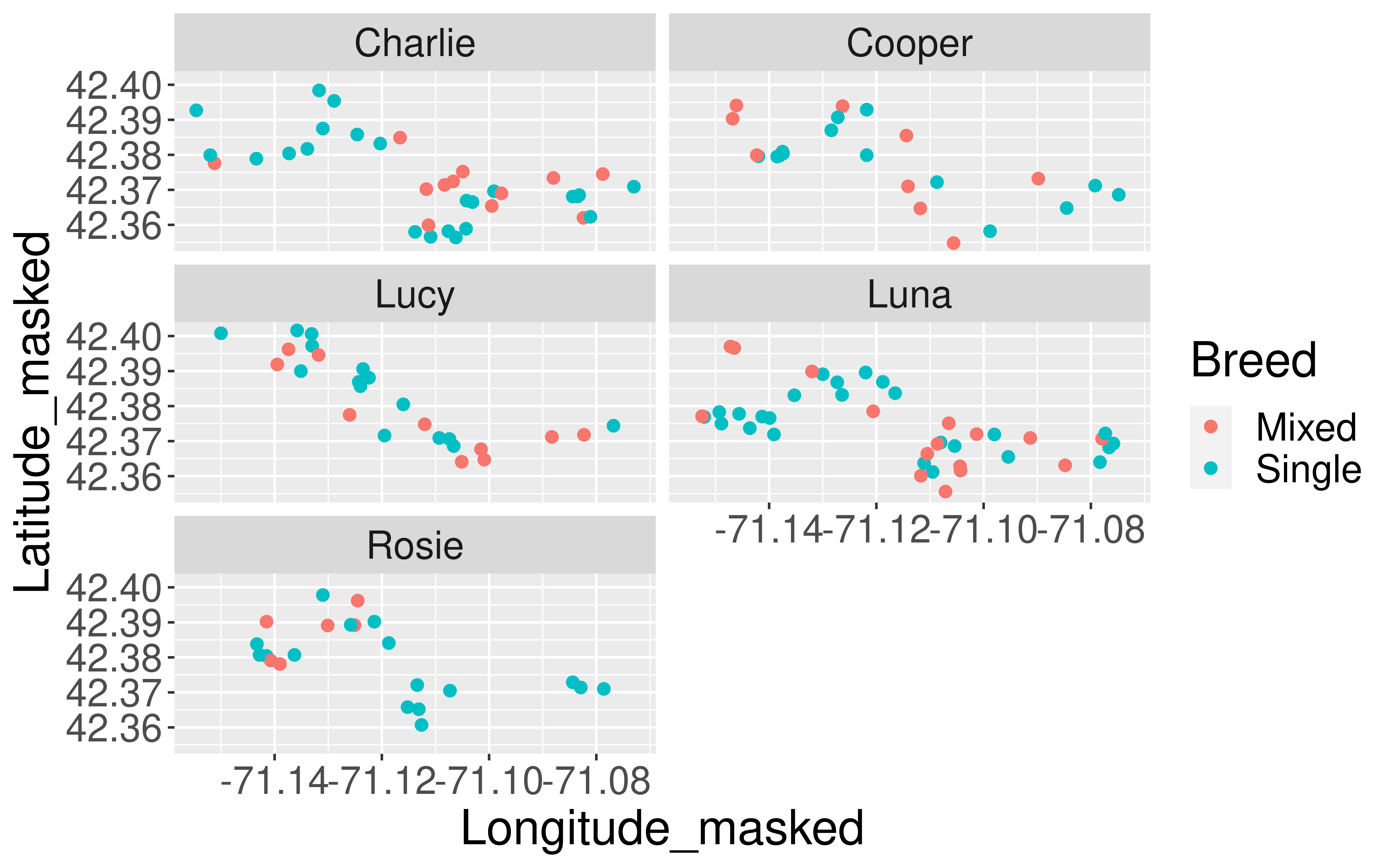

Based on dog license data collected by Cambridge’s Animal Commission
# Import and inspect data
dogs <- read_csv("https://data.cambridgema.gov/api/views/sckh-3xyx/rows.csv")
glimpse(dogs)
Rows: 3,942
Columns: 6
$ Dog_Name <chr> "Butch", "Baxter", "Bodhi", "Ocean", "Coco", "Brio", …
$ Dog_Breed <chr> "Mixed Breed", "Mixed Breed", "Golden Retriever", "Pu…
$ Location_masked <chr> "POINT (-71.1328 42.3989)", "POINT (-71.1186 42.3814)…
$ Latitude_masked <dbl> 42.3989, 42.3814, 42.3998, 42.3726, 42.3610, 42.3892,…
$ Longitude_masked <dbl> -71.1328, -71.1186, -71.1308, -71.1087, -71.1022, -71…
$ Neighborhood <chr> "North Cambridge", "Neighborhood Nine", "North Cambri…
We haven’t learned this topic yet.
I only included this code for completeness/transparency.
# Create a column for Breed
dogs <- mutate(dogs, Breed = if_else(
Dog_Breed == "Mixed Breed",
"Mixed", "Single"))
# Find the 5 top most common names
top5names <- count(dogs, Dog_Name) %>%
slice_max(n = 5, order_by = n) %>%
select(Dog_Name) %>%
pull()
# Filter dataset to only the 5 top most common names
dogs_top5 <- filter(dogs,
Dog_Name %in% top5names)

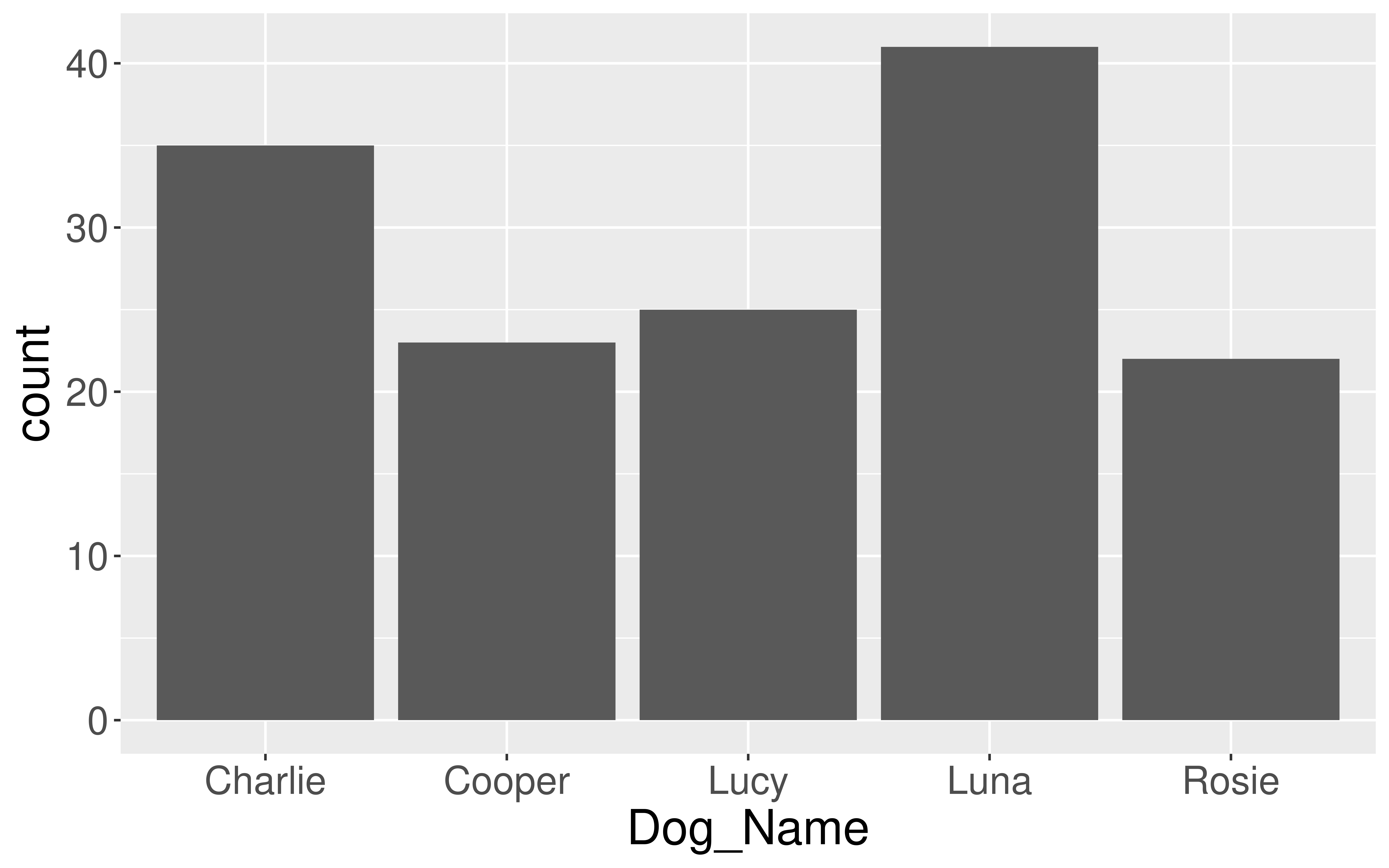

Displays the frequency for each category.

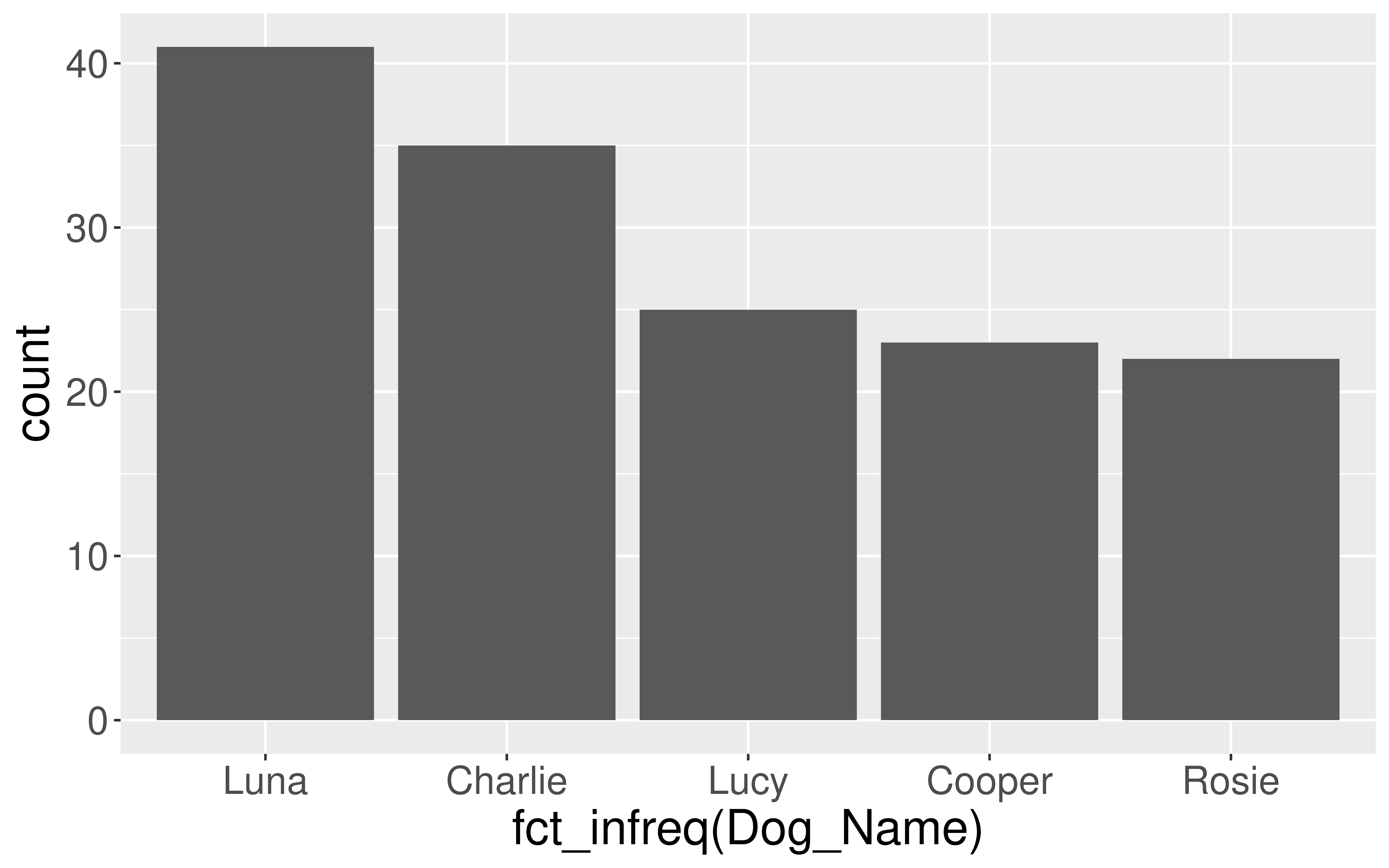

How could we make this graph better?

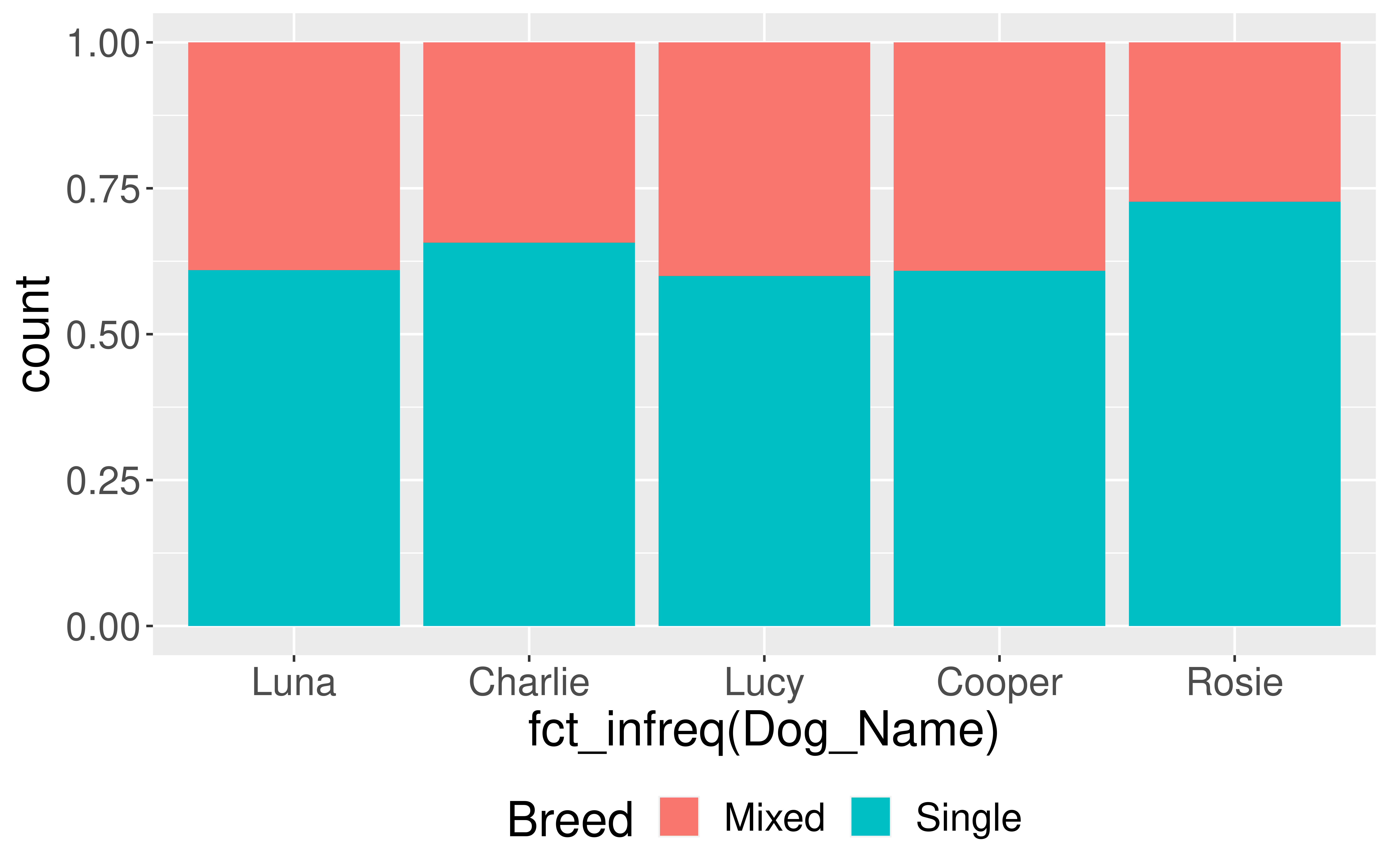

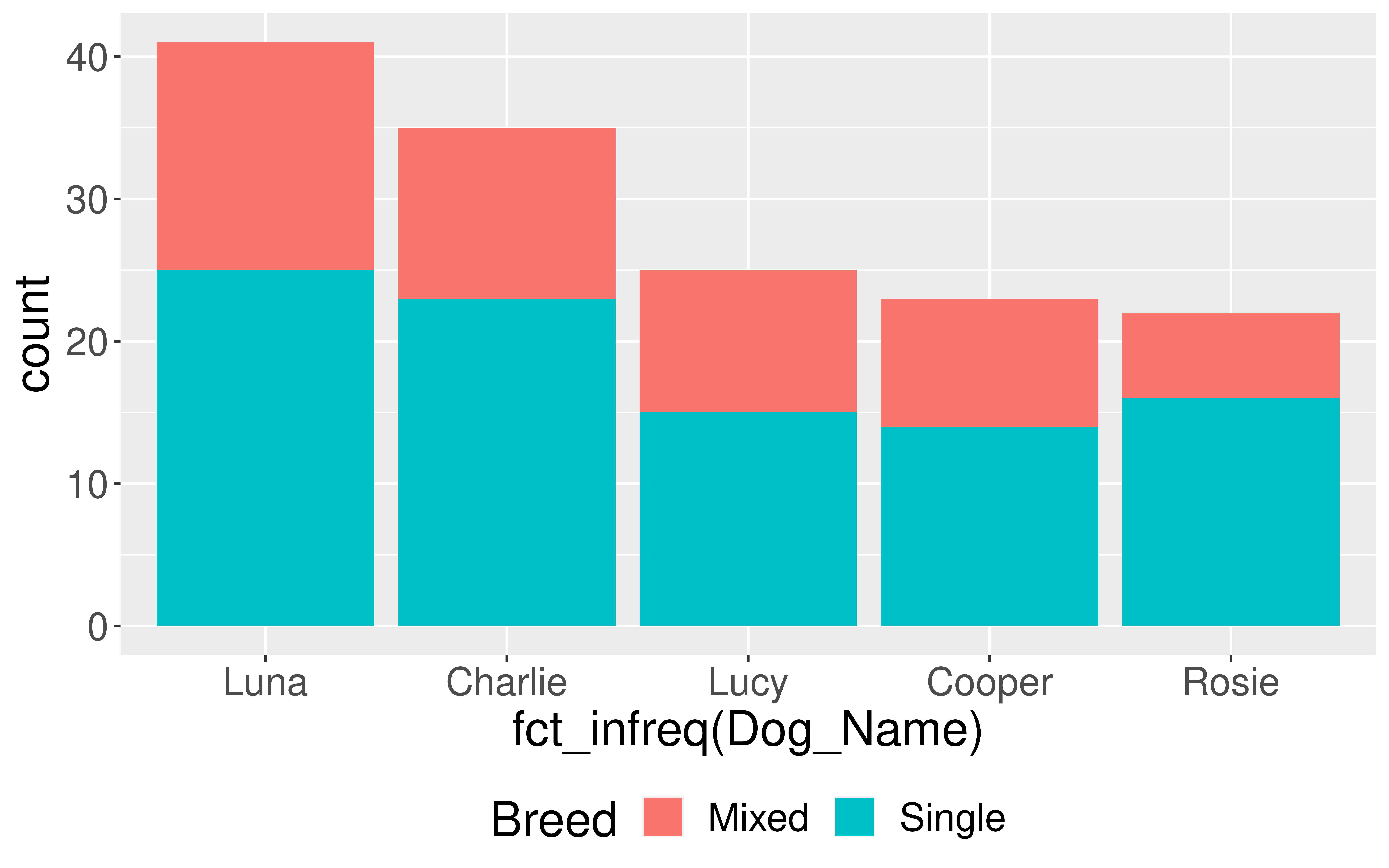

Each bar is divided into the frequencies of the fill
variable.
Hard to make comparisons across categories.
# Create segmented barplot ggplot(data = dogs_top5, mapping = aes(x = fct_infreq(Dog_Name), fill = Breed)) + geom_bar(position = "dodge") + theme(legend.pos = "bottom")
# Create segmented barplot ggplot(data = dogs_top5, mapping = aes(x = fct_infreq(Dog_Name), fill = Breed)) + geom_bar(position = "dodge") + theme(legend.pos = "bottom")

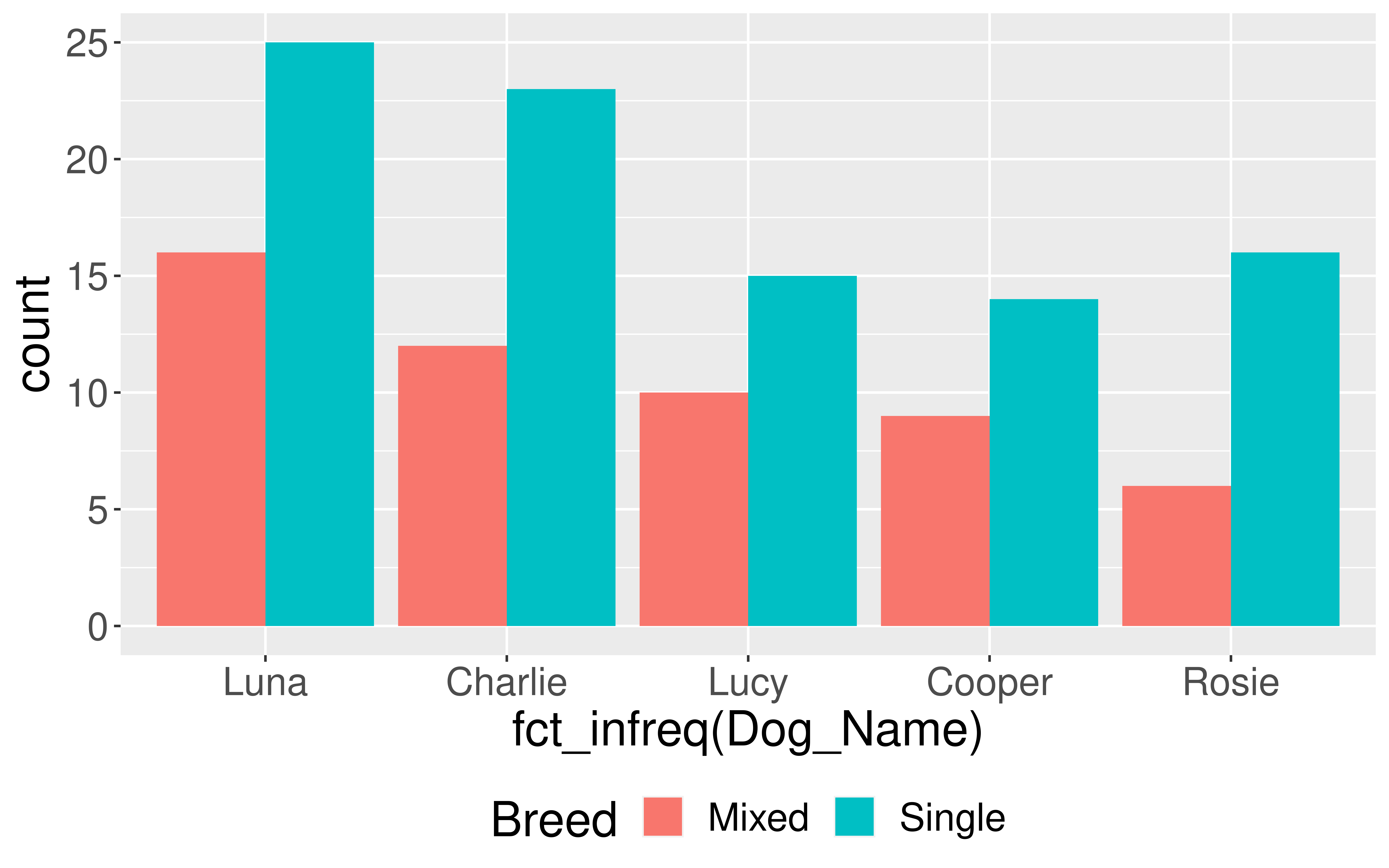

position
argument into the geom_bar()
.# Create segmented barplot ggplot(data = dogs_top5, mapping = aes(x = fct_infreq(Dog_Name), fill = Breed)) + geom_bar(position = "fill") + theme(legend.pos = "bottom")
# Create segmented barplot ggplot(data = dogs_top5, mapping = aes(x = fct_infreq(Dog_Name), fill = Breed)) + geom_bar(position = "fill") + theme(legend.pos = "bottom")
fill
variable.aes
thetics of the geom
aes
theticscolor
.

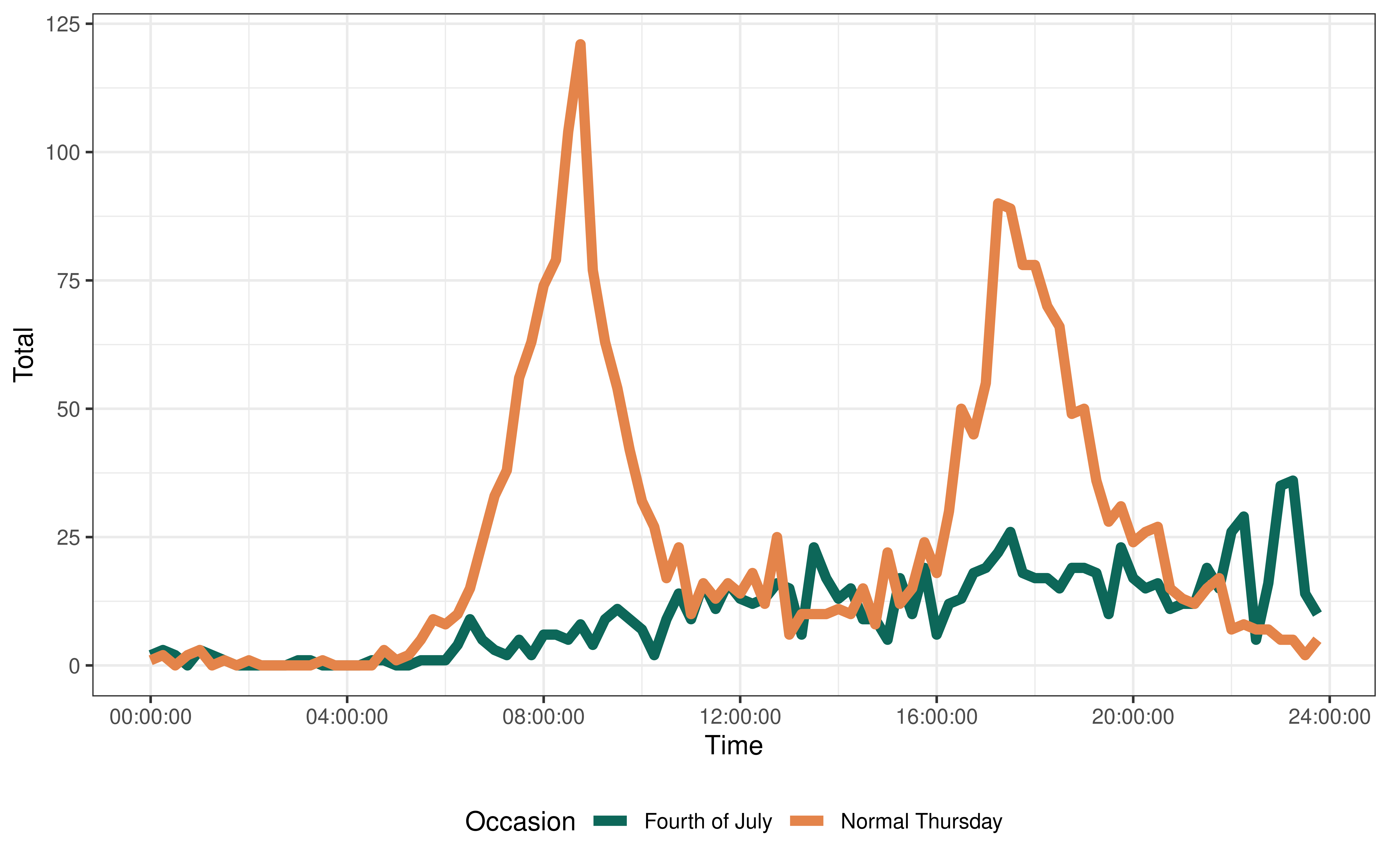

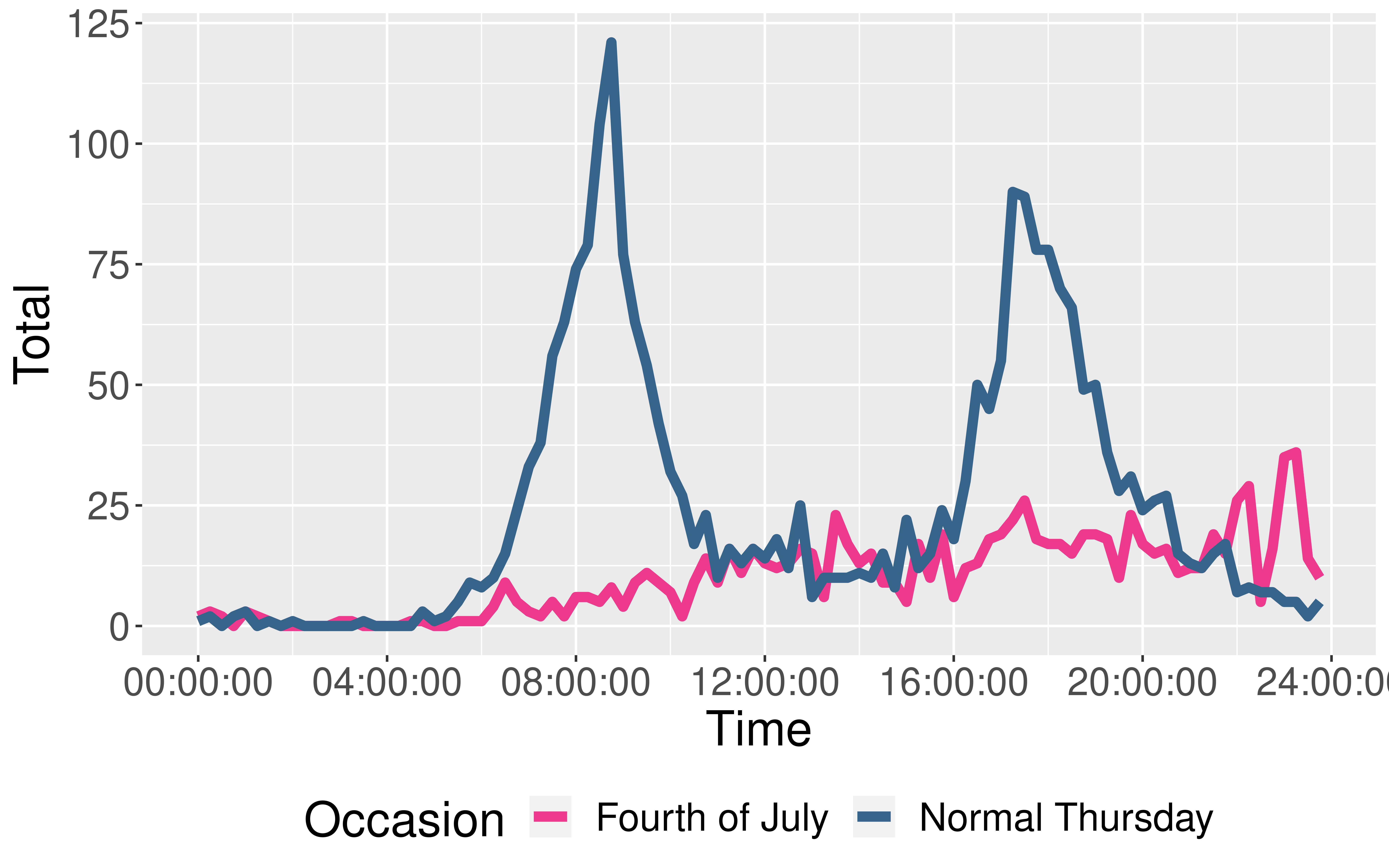

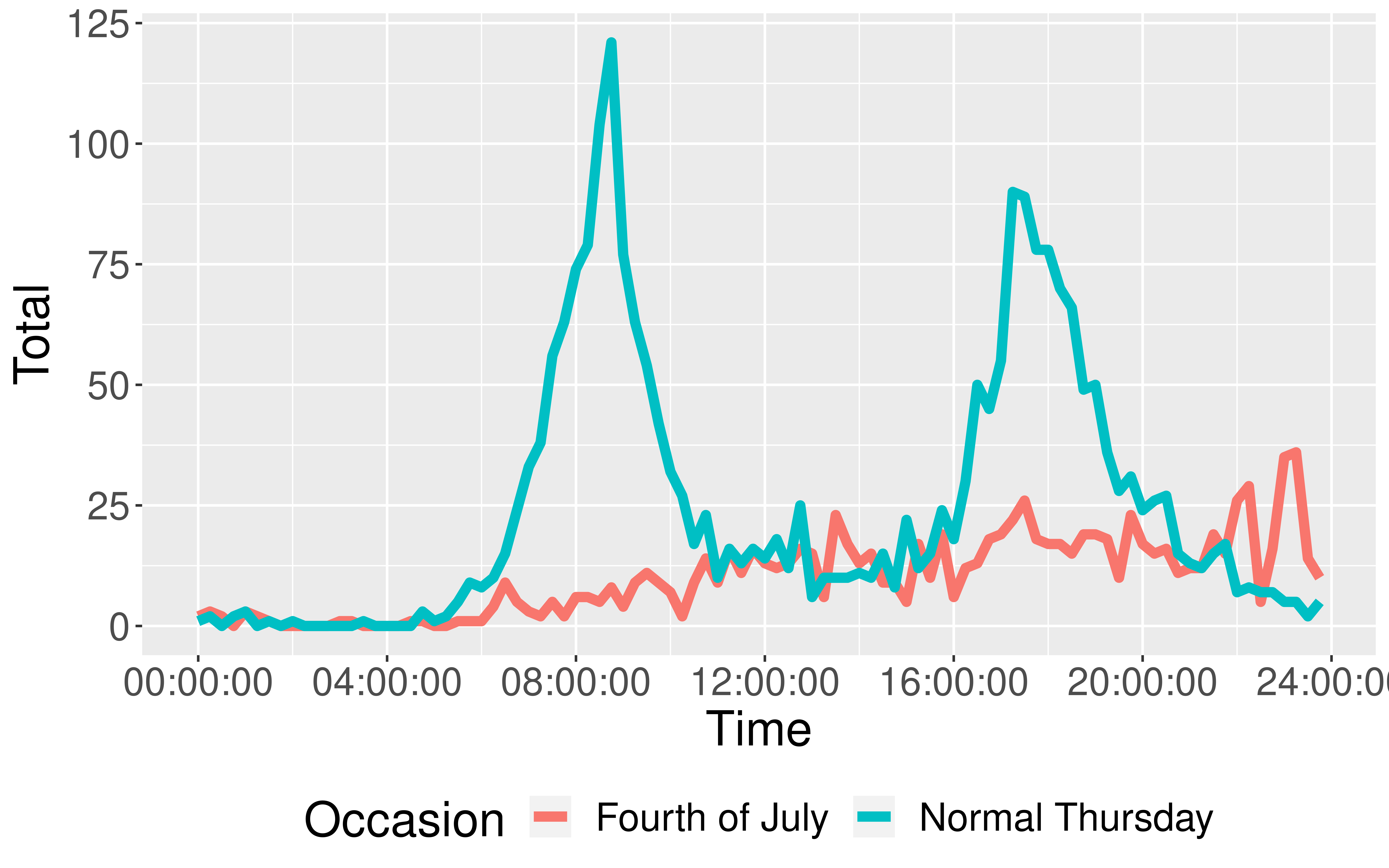

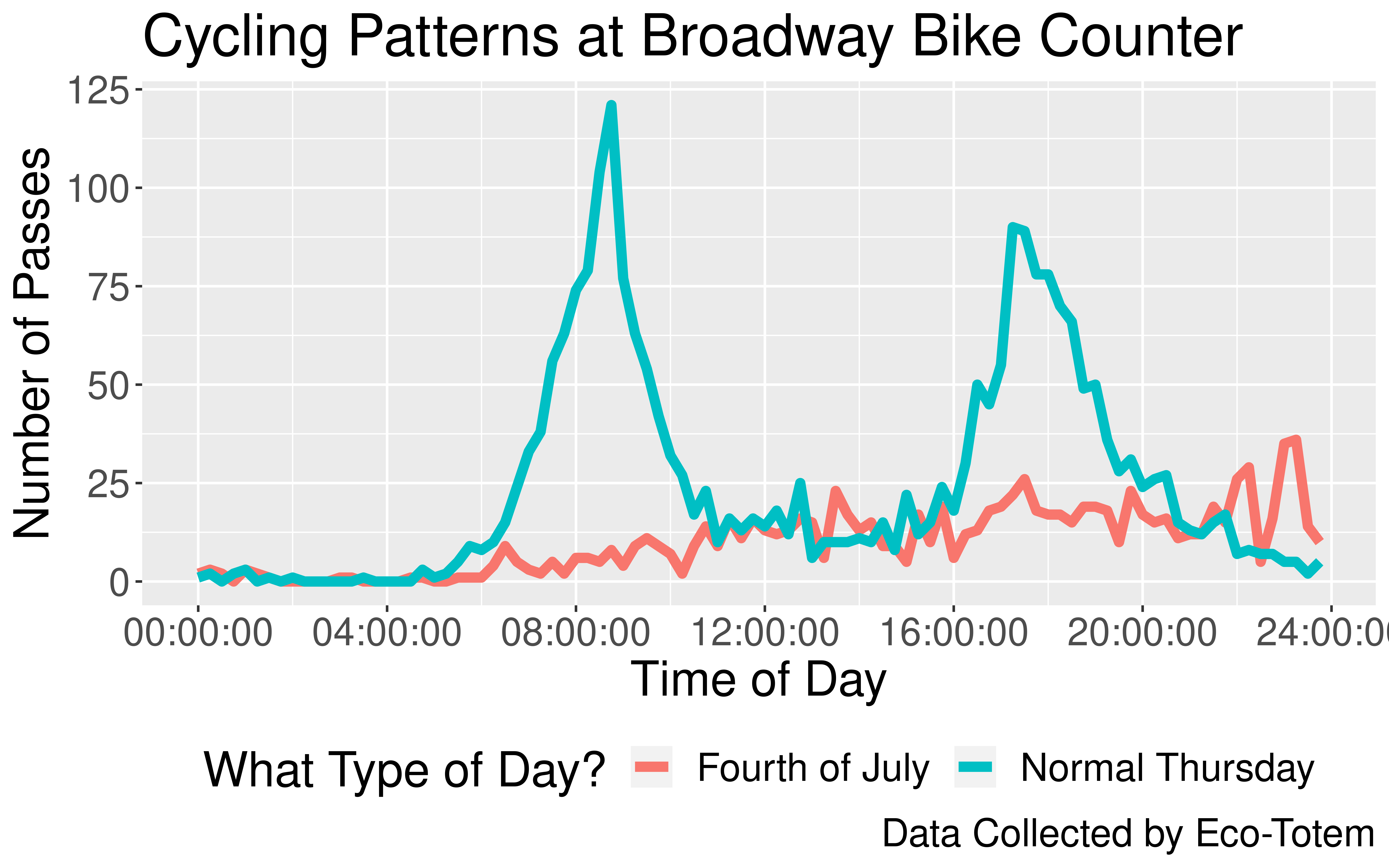

ggplot(data = july_2019,
mapping = aes(x = Time,
y = Total,
color = Occasion)) +
geom_line(size = 2) +
theme(legend.pos = "bottom") +
labs(x = "Time of Day",
y = "Number of Passes",
color = "What Type of Day?",
caption = "Data Collected by Eco-Totem",
title = "Cycling Patterns at Broadway Bike Counter")
ggplot2
PlotsThere are so many ways you can customize the look of your ggplot2
plots.
Let’s look at some common changes:

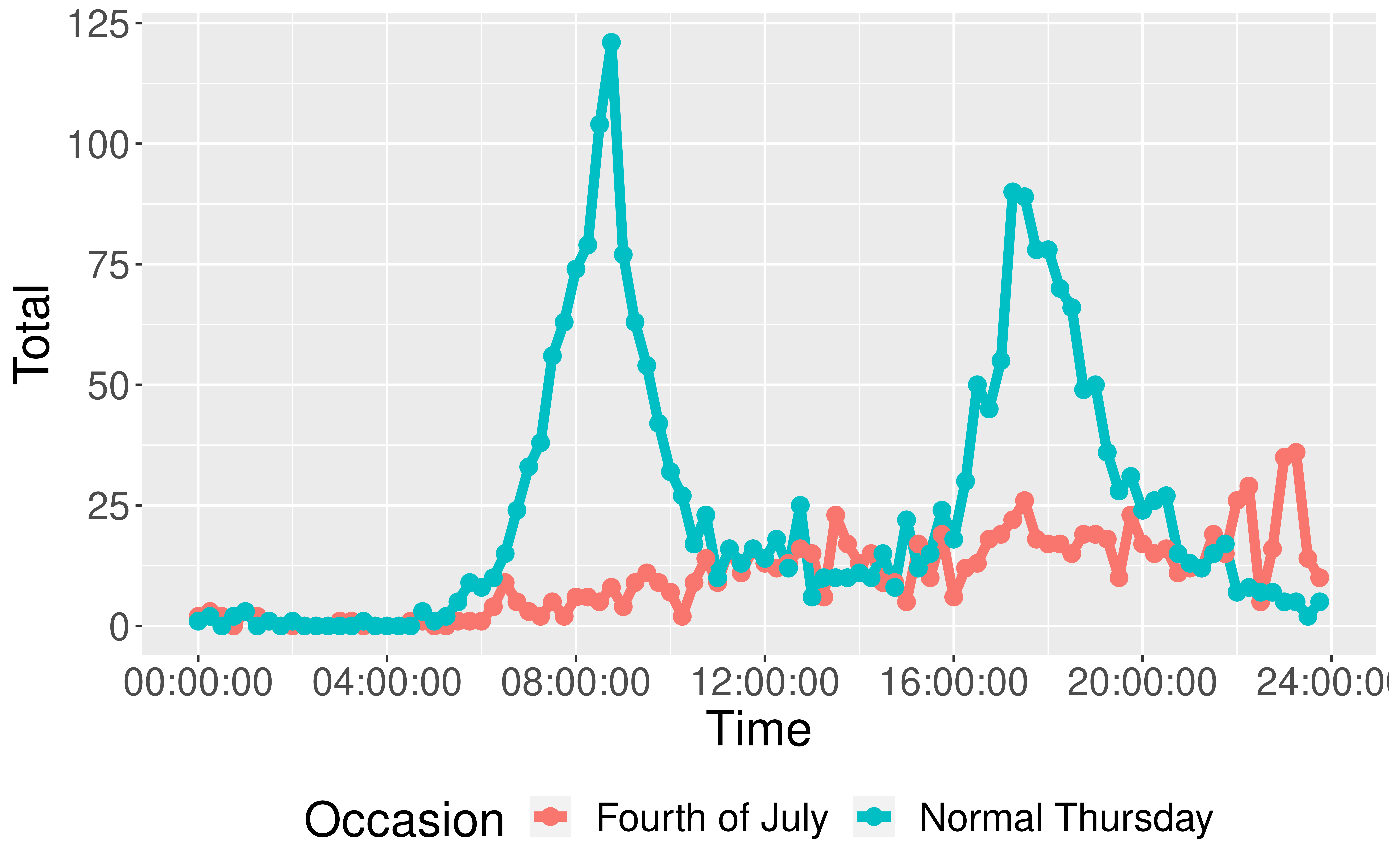

geoms

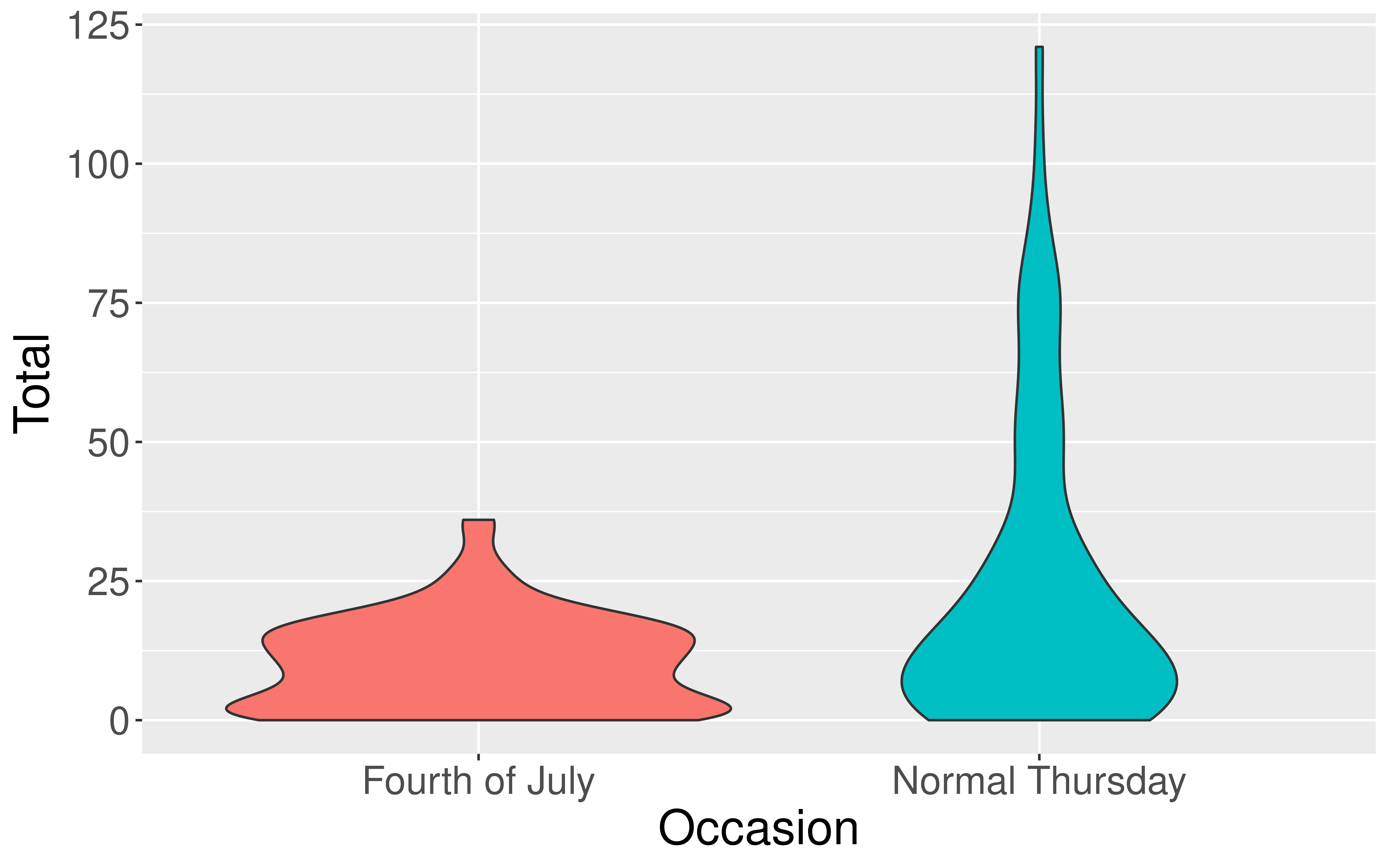

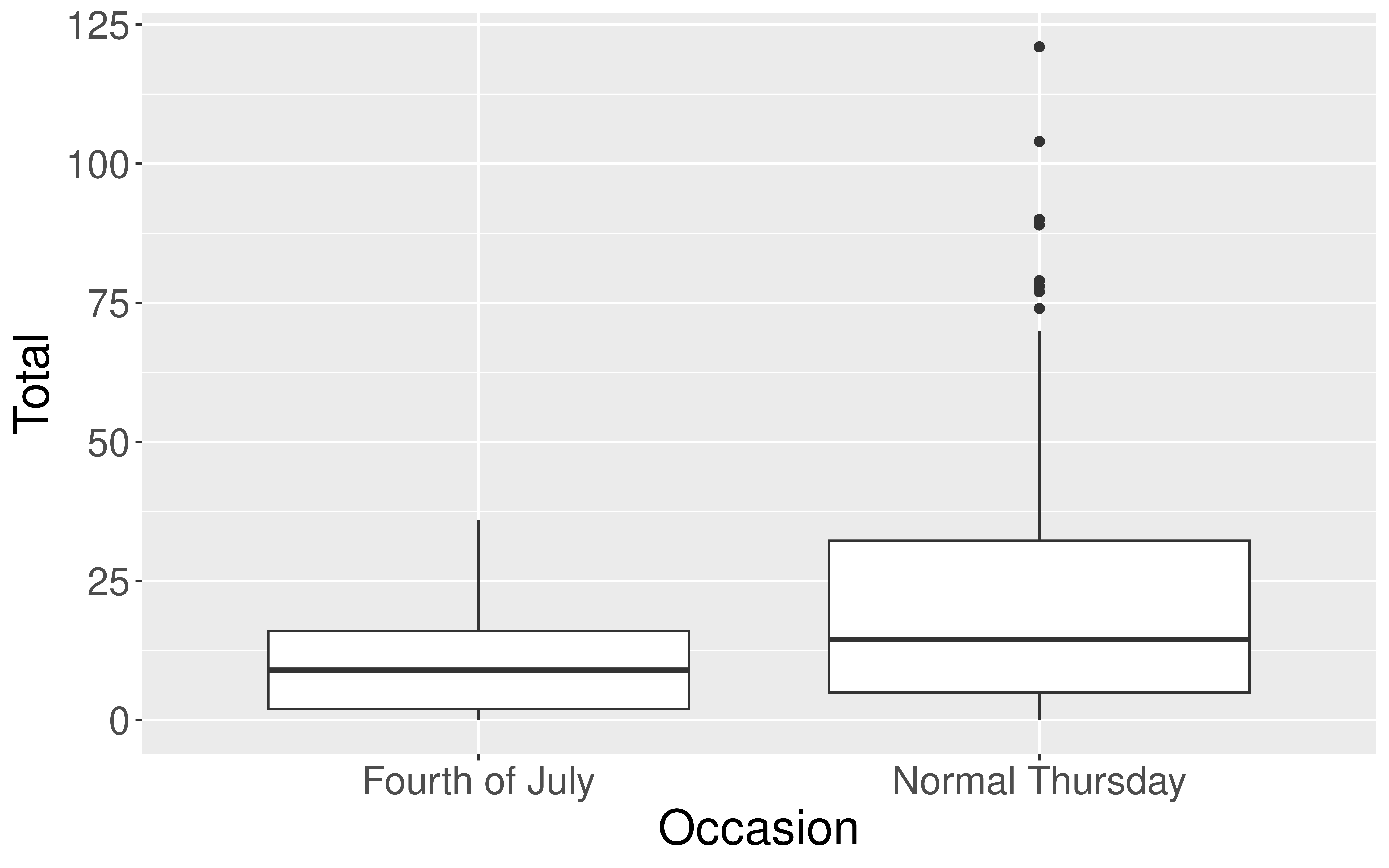

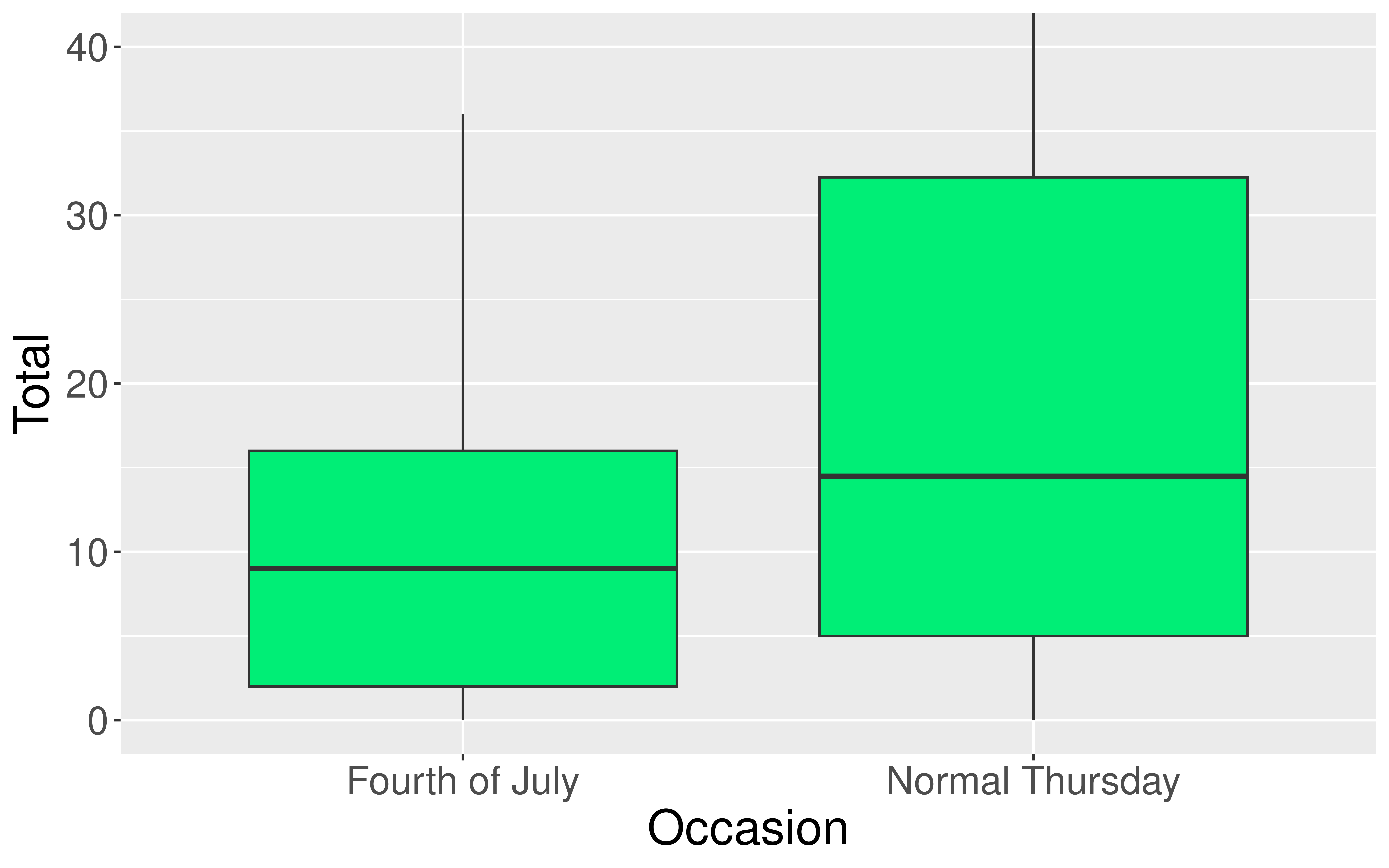

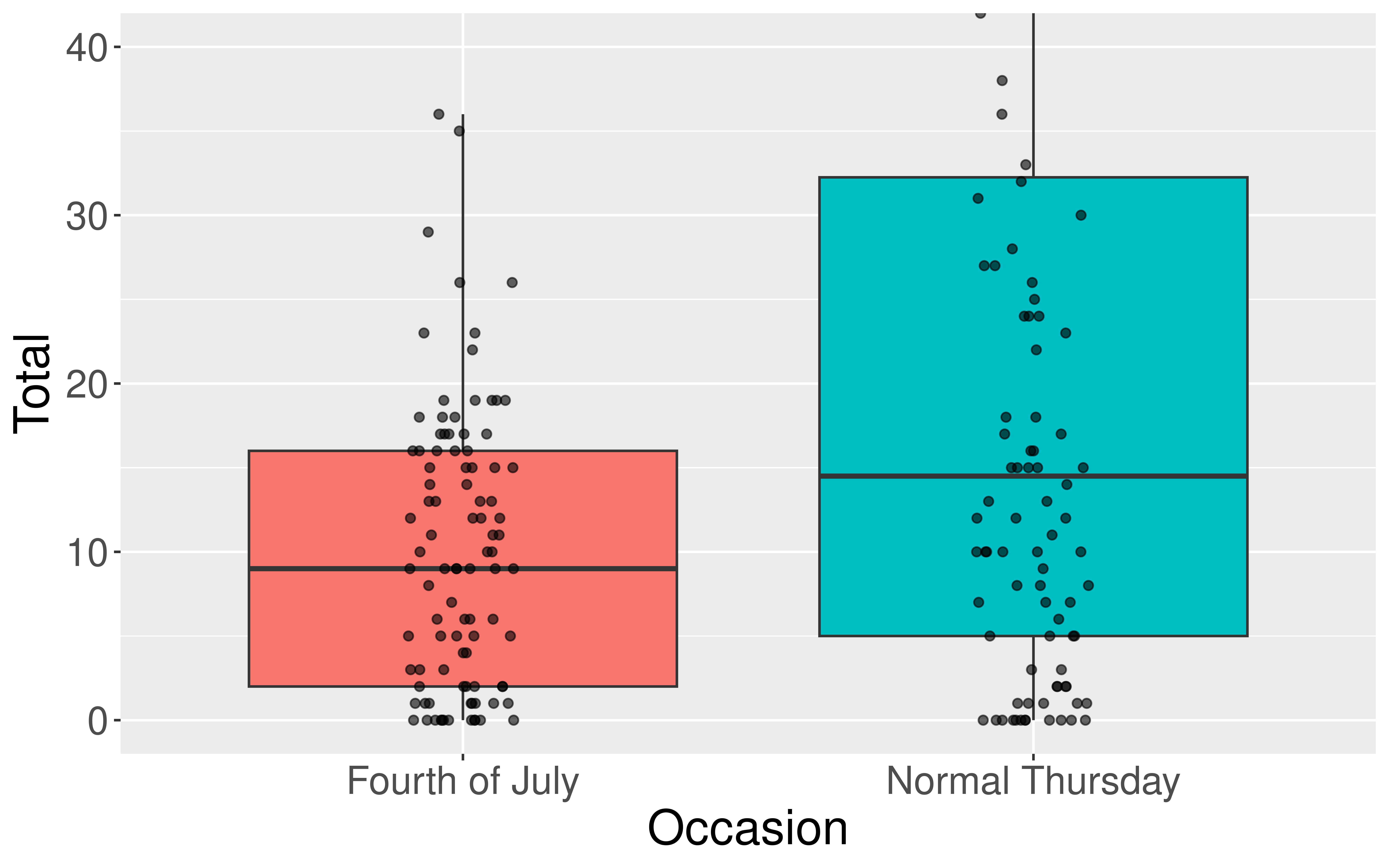

ggplot(data = july_2019, mapping = aes(x = Occasion, y = Total)) + geom_boxplot(fill = "springgreen2") + guides(fill = "none") + coord_cartesian(ylim = c(0, 40)) + scale_fill_manual()

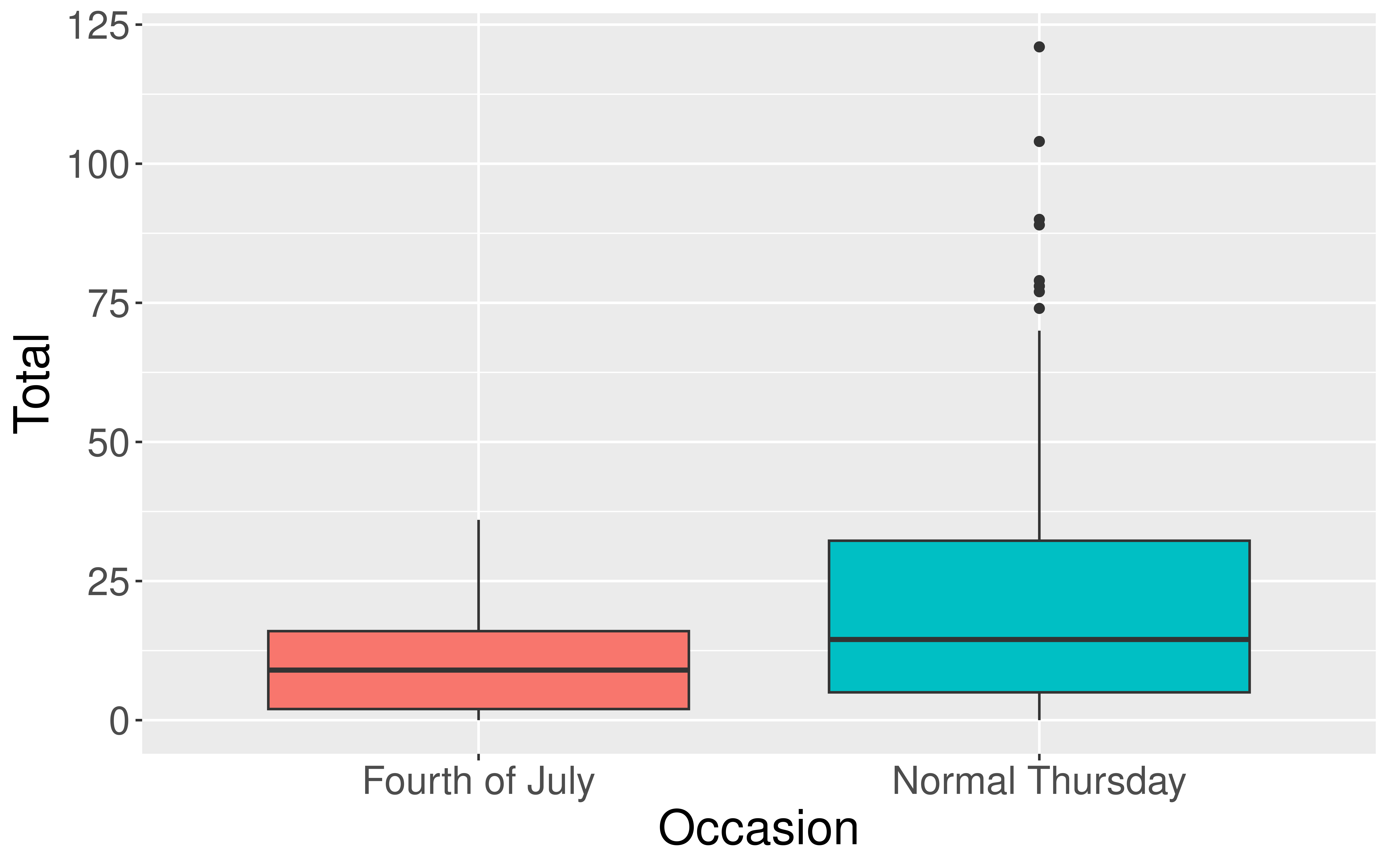

ggplot(data = july_2019, mapping = aes(x = Occasion, y = Total)) + geom_boxplot(fill = "springgreen2") + guides(fill = "none") + coord_cartesian(ylim = c(0, 40)) + scale_fill_manual()
geom
sgeom
